manual knockout punch kit
Features:

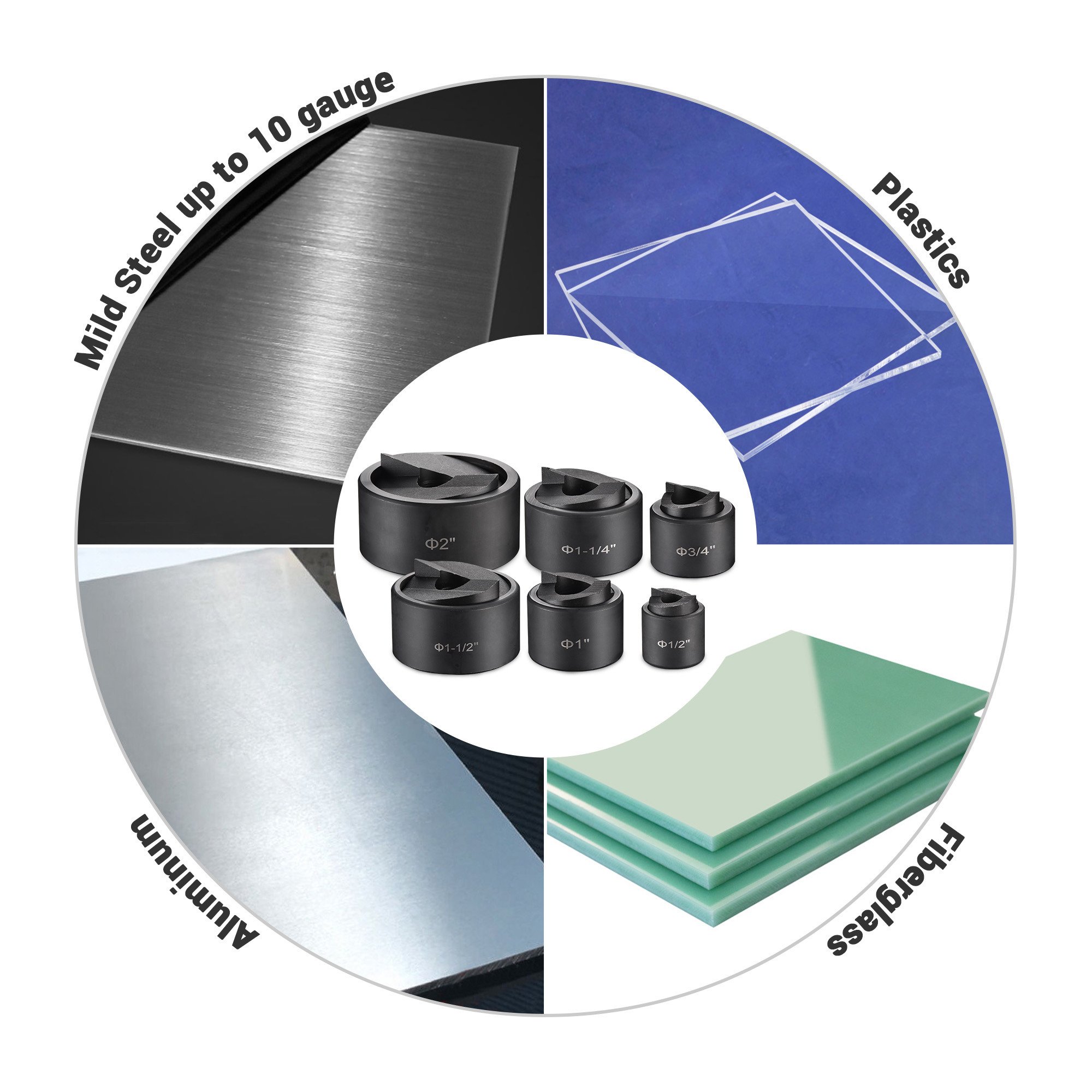

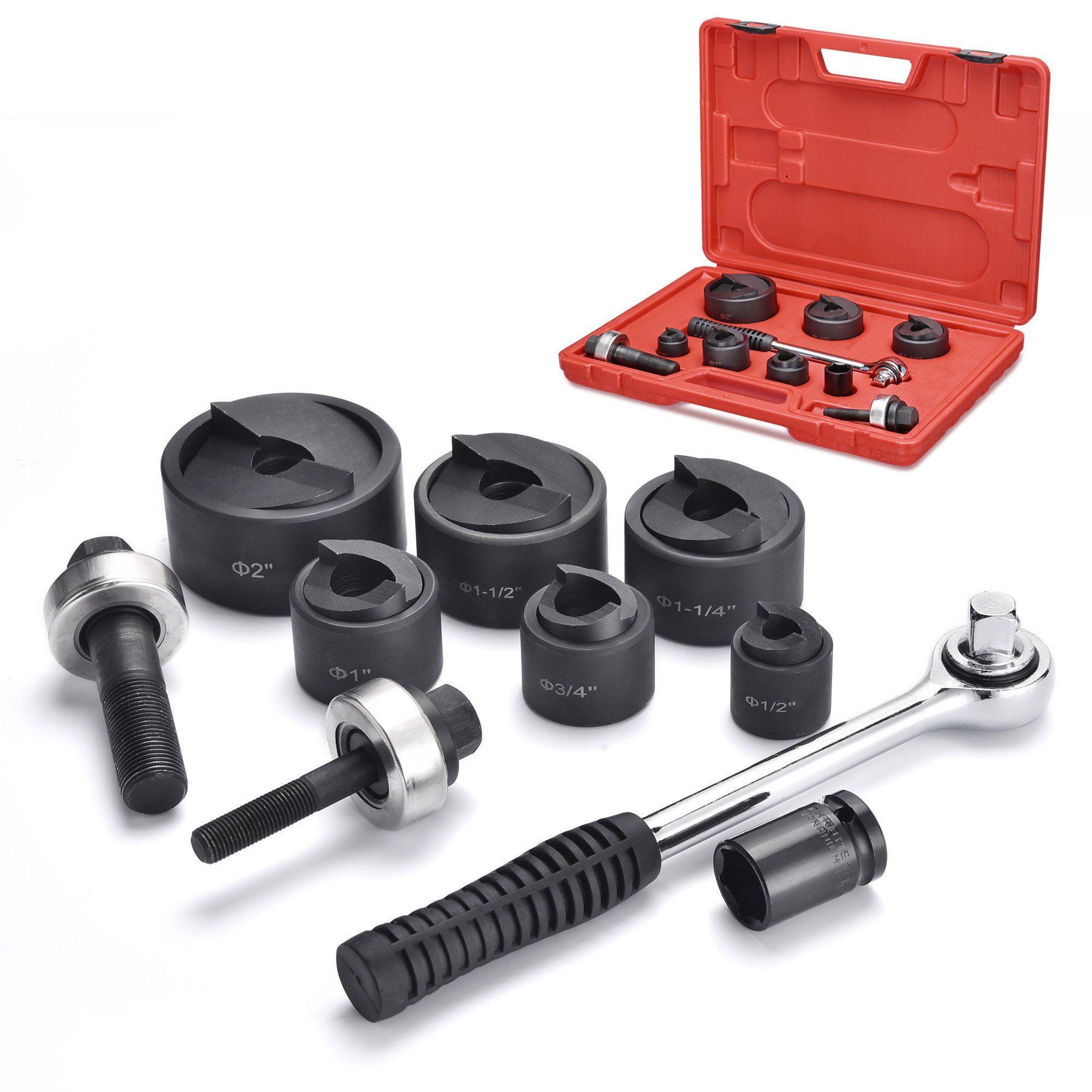

- Complete Hole Cutter Set - 6 Ton Manual Knockout Hole Punch Driver Kit includes 1 wrench; 1 sleeve; 2 draw studs; 6 punches & 1 carrying case; With 6 punch sizes including 1/2"; 3/4"; 1"; 1-1/4"; 1-1/2"; 2"; it can punch holes in mild steel up to 10 gauge; aluminum; fiberglass & plastics
- Smooth Punching - Slug splitting design punch with 6 tons punching force for smooth punching & easy slug removal; leaving round holes & uniform hole size with clean hole edges

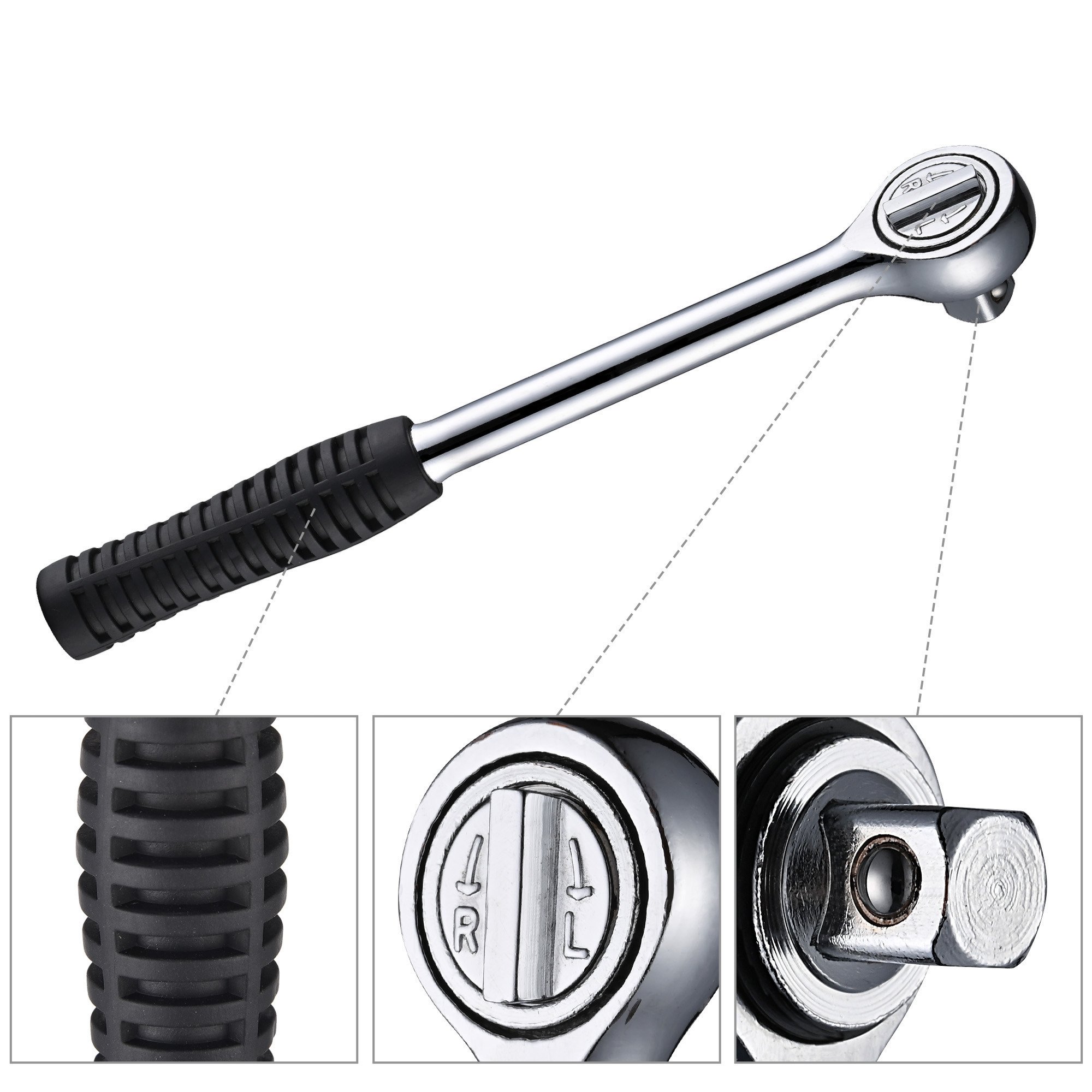

- Humanized & Laborsaving - Long handle wrench with humanized design and anti-skid textured surface for greater leverage and better grip; saving energy

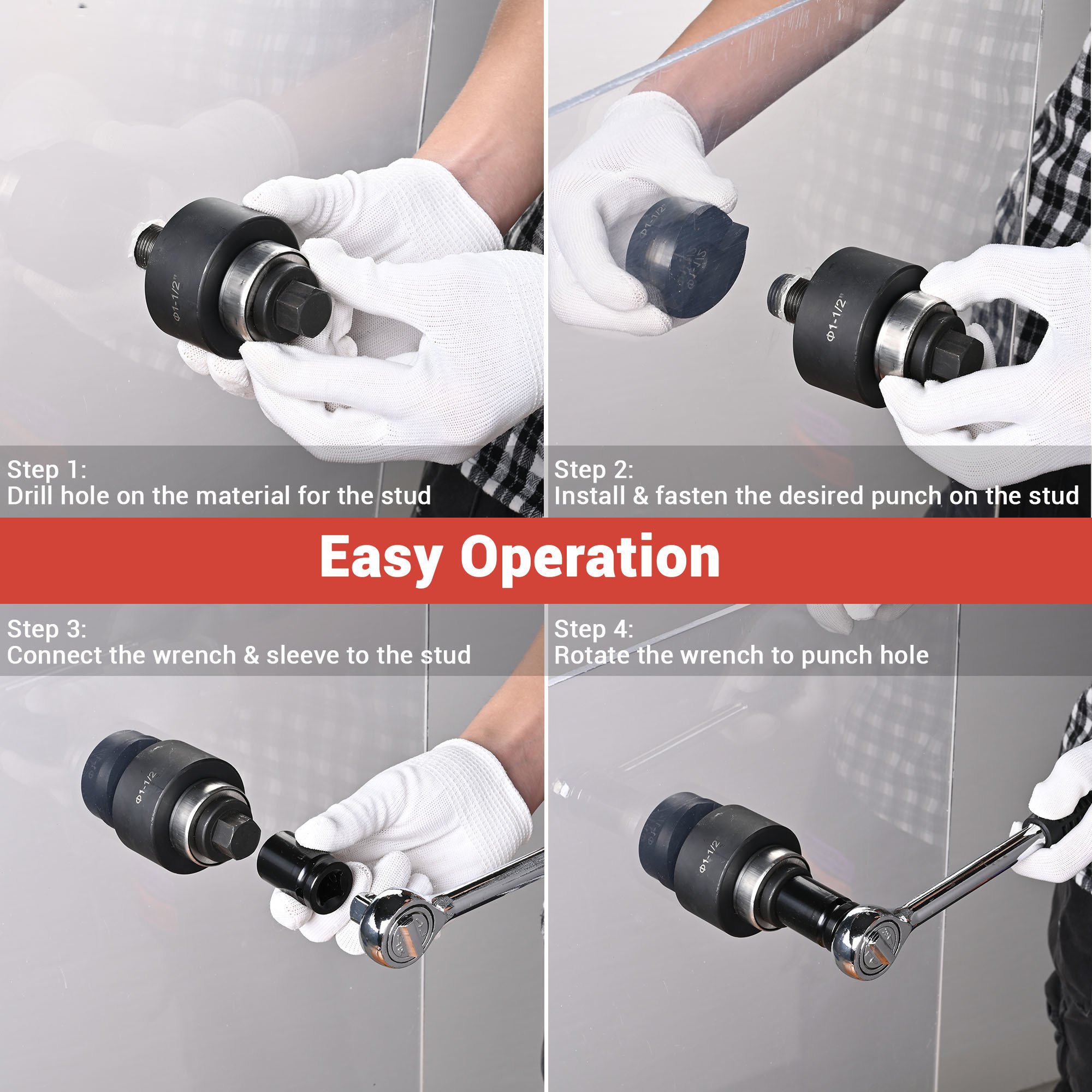

- Easy Operation - Just drill hole on the material for the stud; then install the desired punch on the stud; connect the wrench & sleeve to the stud and rotate the wrench to punch hole

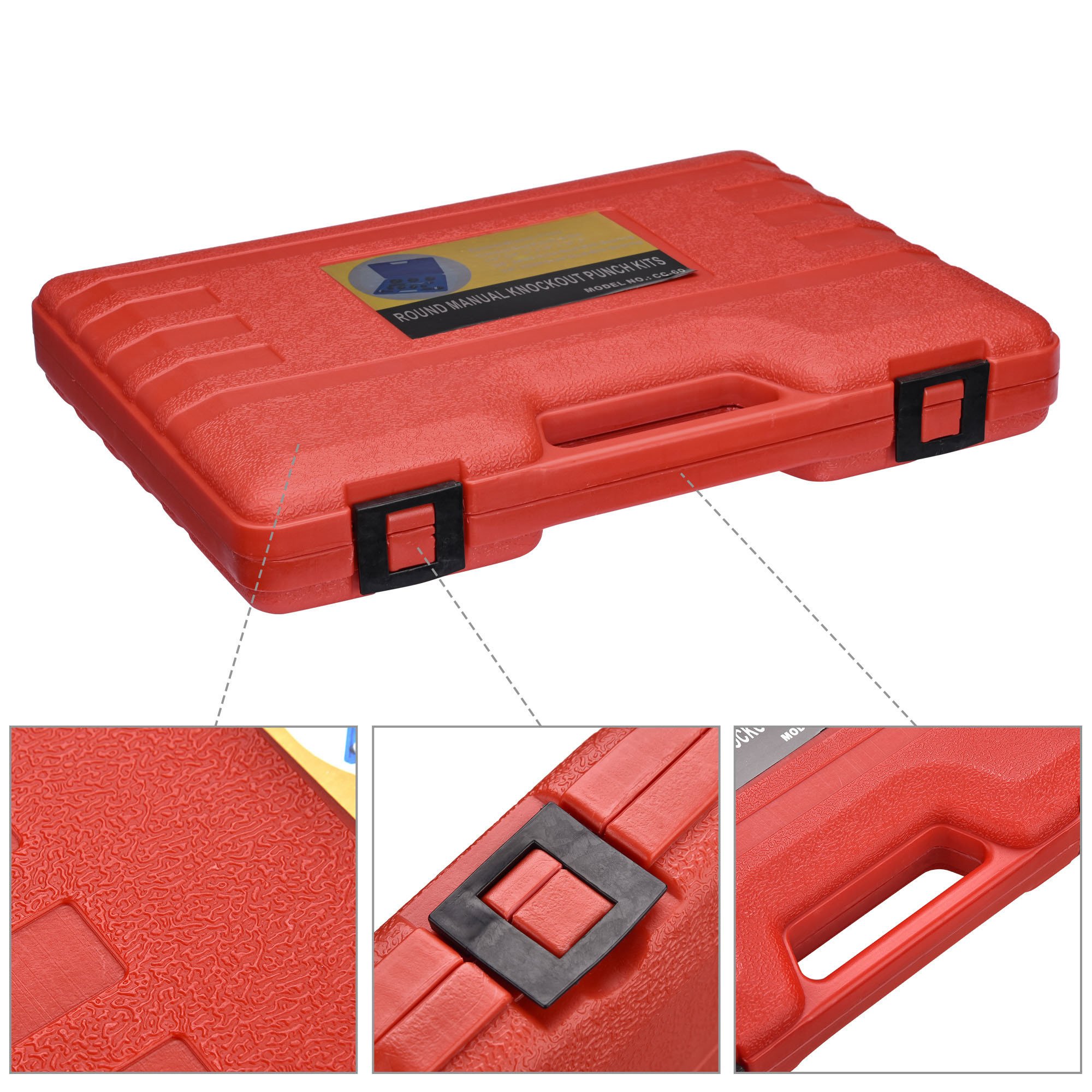

- Durable & Portable - Alloy steel punches provide corrosion & wear resistance; tough enough to punch holes & ensure a long lifespan; Carrying case with molds keeps all tools in place; easy to carry from place to place
Specifications:

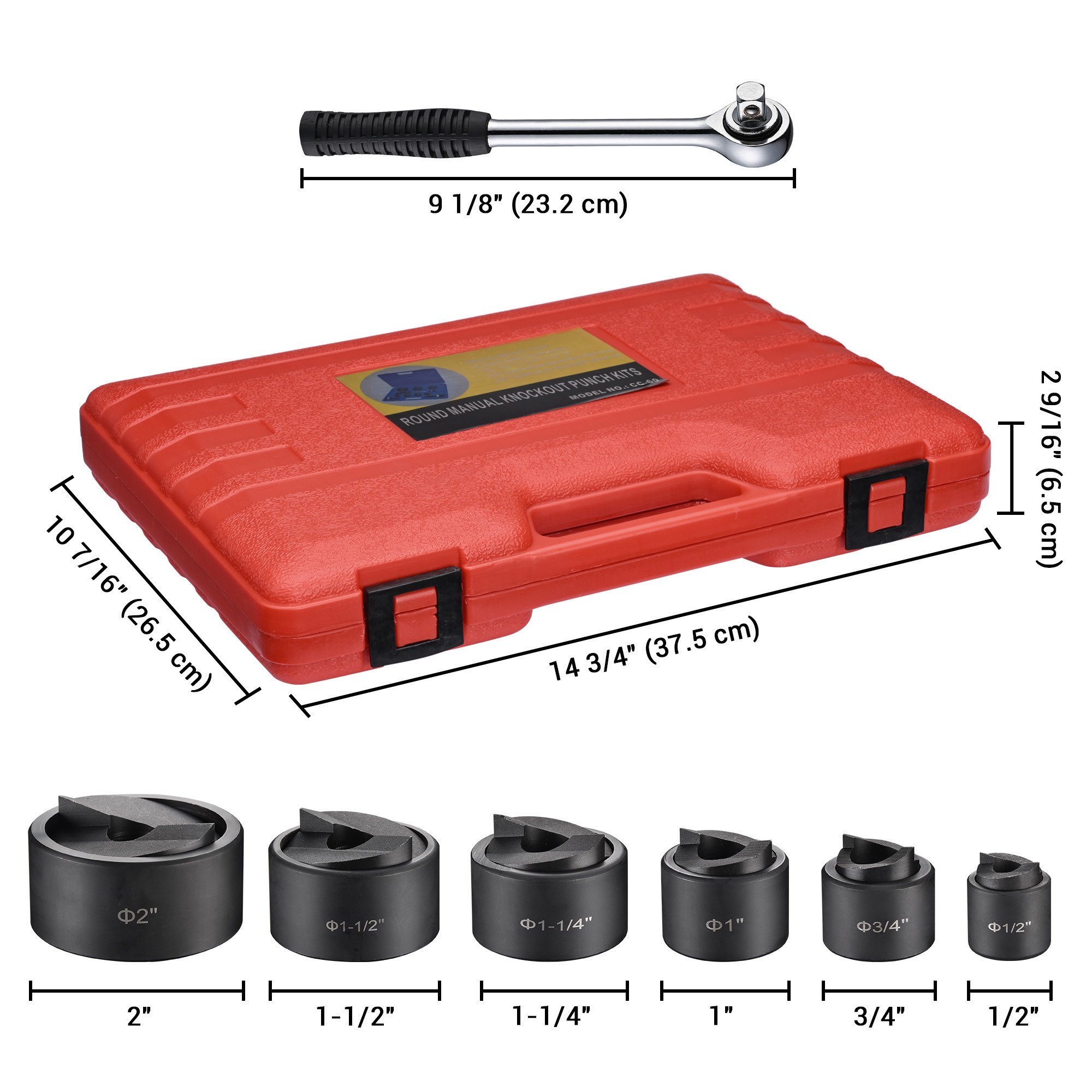

- Knockout Punch Length: 9 1/8" (23.2 cm)
- Punches size: 1/2"; 3/4"; 1"; 1-1/4"; 1-1/2"; 2"
- Punching size: 7/8"; 1 1/8"; 1 3/8"; 1 11/16"; 1 15/16"; 2 3/8" (22.5 mm; 28.3 mm; 34.6 mm; 43.2 mm; 49.6 mm; 61.5 mm)
- Environment Temperature: Minus 20 degrees Celsius to Plus 40 degrees Celsius
- Small Draw Stud Screw Thread Diameter: 7/16" (1.1 cm)
- Large Draw Stud Screw Thread Diameter: 3/4" (1.9 cm)
- Carrying Case Size: 14 3/4" x 10 7/16" x 2 9/16" (37.5 x 26.5 x 6.5 cm)
- Net Weight: 10.25 Lbs (4.65 kg)

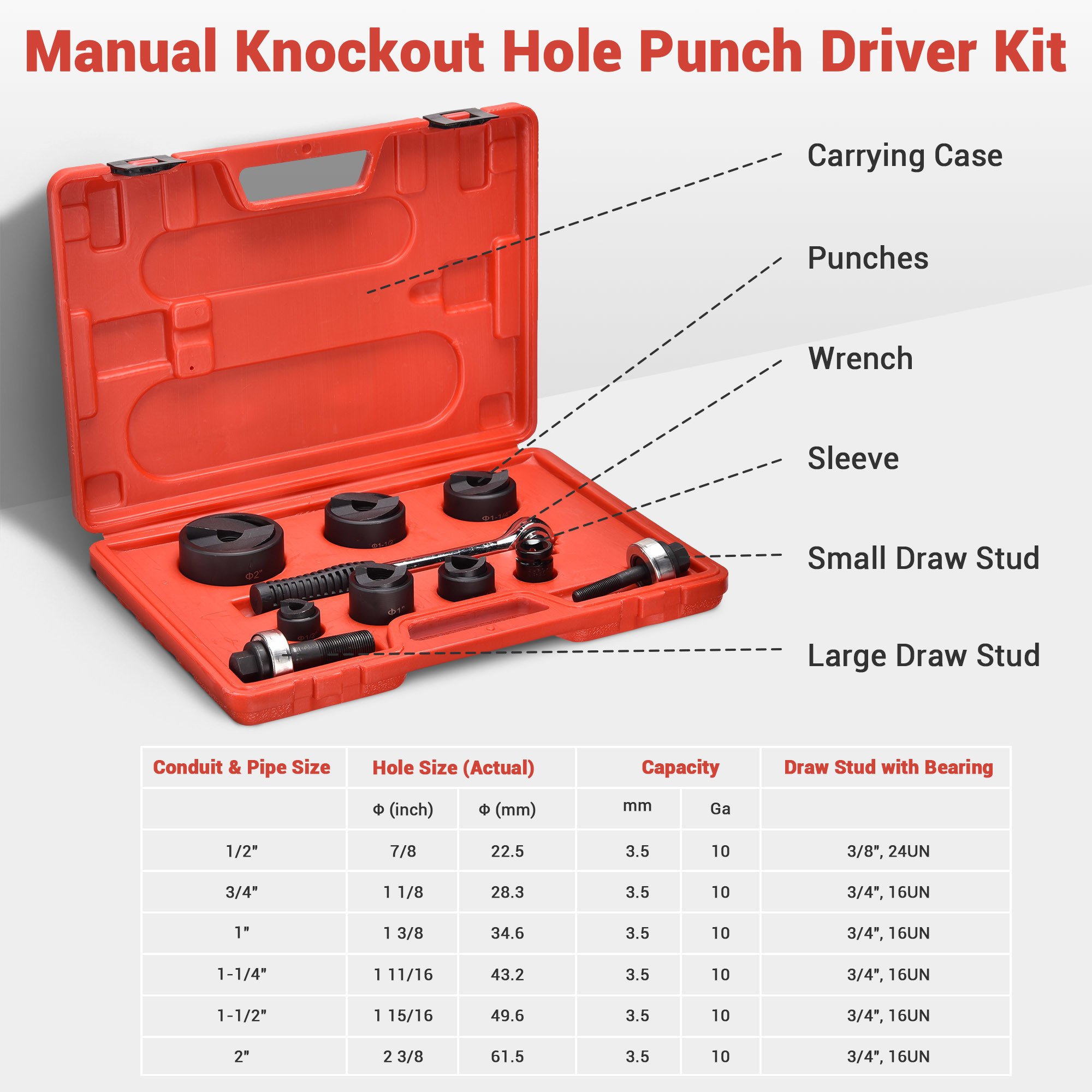

Package Contents:
- 1x Wrench
- 1x Sleeve
- 1 Set of Large Draw Stud
- 1 Set of Small Draw Stud
- 6 Sets of Punches
- 1x Carrying Case
- 1x Manual
Notice:
- 1.This product CAN NOT punch holes in stainless steel with a thickness of more than 2mm;
- 2.When hole is completed; the punch unit (punch; die & draw stud) can fall free toward the die side;
- 3.Make sure you have firm footing & balance when operating to avoid injuries in case of slippage or any other loss of control.
